Description
Price: $159.99
(as of Jun 11, 2024 23:26:57 UTC – Details)
Product Description
Features:
Made of high quality metal shell, not easy broken, very durable.

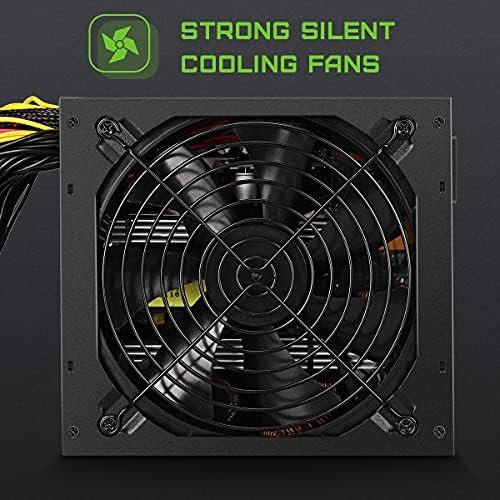

Big fan design, better heat dissipation, longer service life.
Requires 110-240V wide voltage to work!

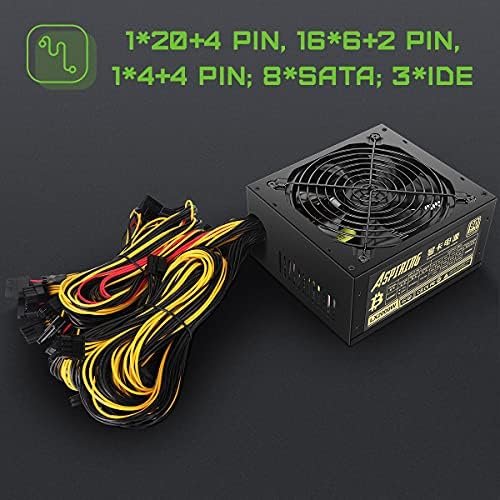

Comes with 1 * 20+4 Pin, 16 * 6+2 Pin, 1 * 4+4 Pin; 8 * SATA; 3 * IDE
Up to 93% efficient, to reduce your electricity bill.
How to Power On This Device
Fisrtly,you must connect 20+4 pin connector to the motherboard
Then connect the power supply with power cable
Now you can power on this device
Base on above,it can offer power to graphics card,CPU, Hard Disk and Cooling Fan
That mean,you must keep power supply connect to motherboard all the time
Active PFC Circuit

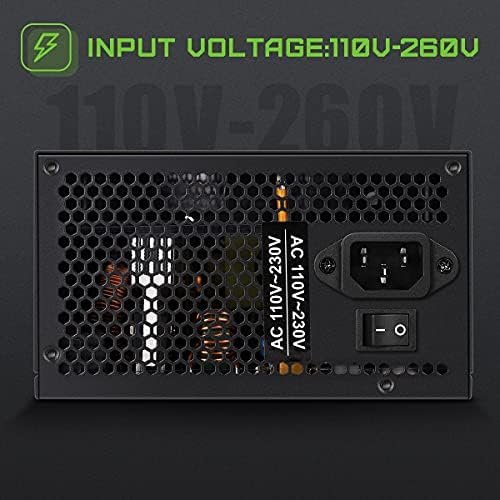

This power supply uses an active PFC circuit,The input voltage can be from 110V to 260V ,The conversion rate is as high as 90% or more, it is more energy-efficient!
It has 16 * 6+2 Pin(offer power to graphics card)

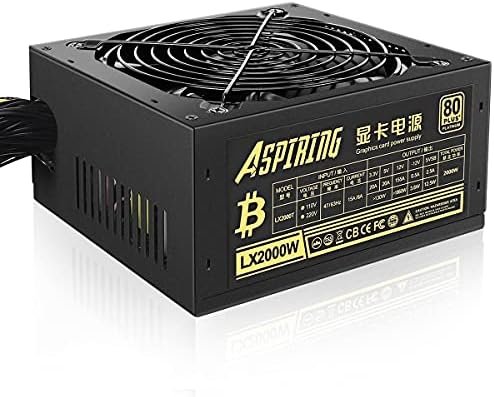

2000 watt Mining Power Supply
Active PFC power supply has the advantage of high reliability; The output does not fluctuate with the input voltage, so a highly stable output voltage can be obtained, which truly protects the computer. pure copper output cable, with 16 pices P6+2 Discrete graphics card interface
How to Test
If can’t power on the device,maybe the voltage is below110V,maybe it is motherboard problem,you can run a simple testing:
Just Short Circuit the 24pin connector
Use a Conductive iron wire connect No.4 and No.5 pin on the 24pin connector Then you power on the the device
Specifications:
Type: For Bitcoin power supply
Total Power Output: 2000W
Fan: 14*14cm
PFC: Active PFC
Conversion Efficiency: Max 93%
Frequency: 47/63Hz
Input current: 15 / 8A
DC OUTPUT: +3.3V / 26A
+5V / 30A
+12V / 128A
-12V / 0.5A
+5VSB / 3A

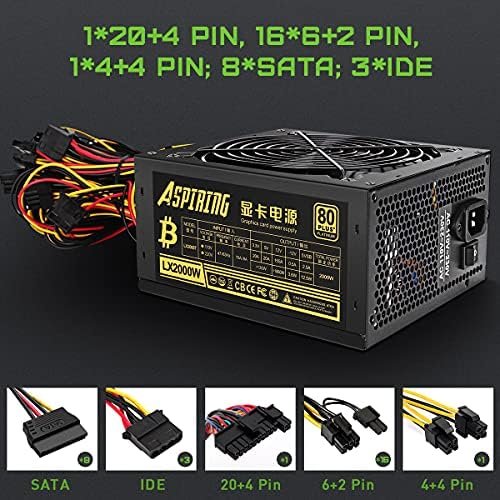

Connector:
1 * 20+4 Pin(offer power to mother board)
16 * 6+2 Pin(offer power to graphics card)
1 * 4+4 Pin;(offer power to CPU)
8 * SATA; (offer power to Hard Disk)
3 * IDE(offer power to Cooling Fan)
Compatibility: For Bitcoin / Litecoin mining machine
【Multiple Mining Power Supply】 Interfaces: 20+4PIN*1, 4+4PIN*1, SATA*8, 6+2PIN*16,3 * IDE – Voltage: Normal operation under 110V-240V

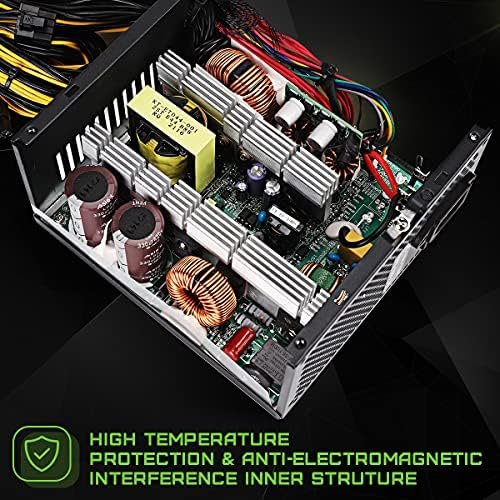

【High Temperature Protection】: When the temperature exceeds 50 centigrade, the power supply will start high temperature protection to avoid damage to it caused by excessive temperature
【Active PFC Circuit】:Input voltage can be from 110V to 260V ,Conversion rate reach 90% or above, more power saving
【Pure Copper Core Wire】: The wire uses a pure copper core, which is resistant to high temperatures and more durable
【Dust-proof and moisture-proof】: the power supply is equipped with a dust cover to adapt to various harsh environments
